5-103635-4
Manufacturer:
TE Connectivity
Mfr.Part #:
5-103635-4
Datasheet:
Description:

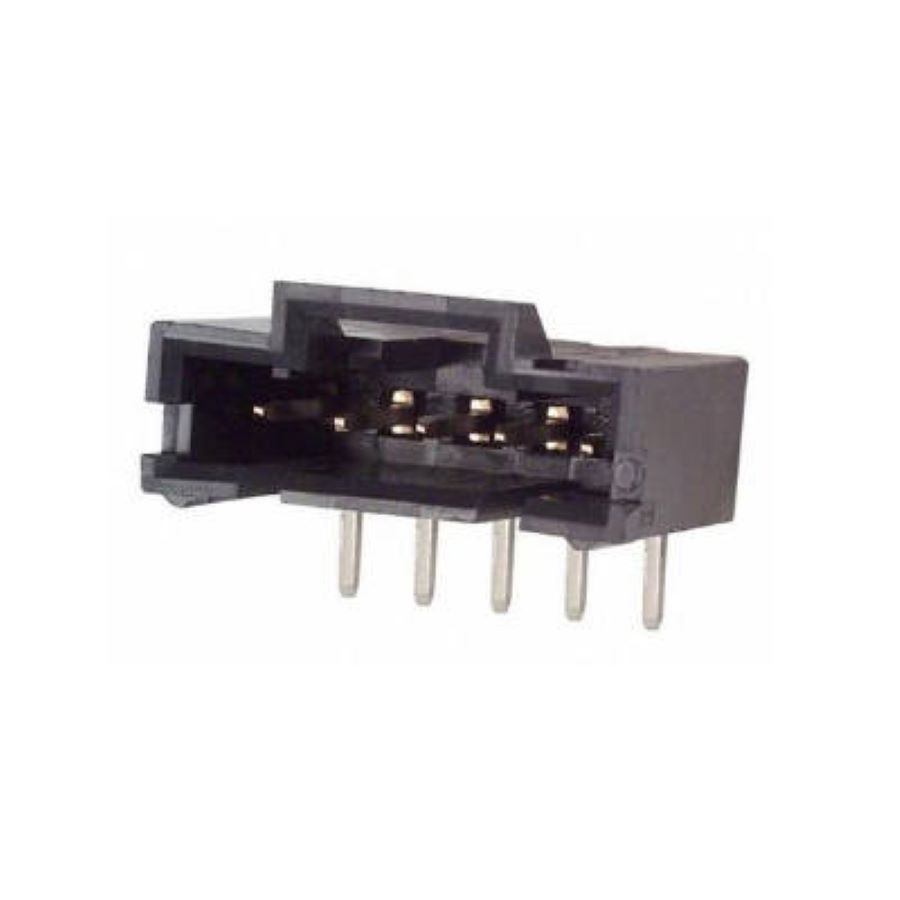

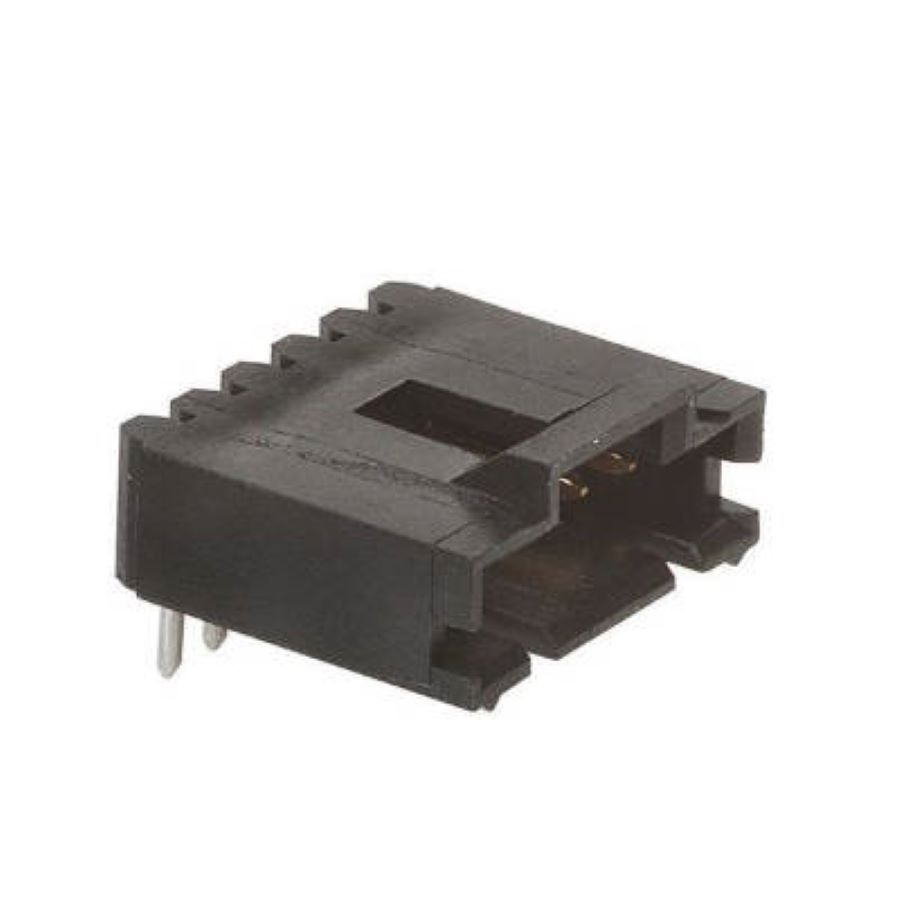

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:5 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 15.24 mm |
| Width | 15.24 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Height | 13.59 mm |
| Packaging | Tube |
| Depth | 13.59 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| Insulation Resistance | 5 GΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Gold |
| Contact Material(Contact Finish) | Brass |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 5 |
| ELV | Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Contact Style | Pin |
| Contact Resistance | 15 mΩ |
| Contact Current Rating | 3 A |
| Housing Color | Black |
| Plating | Gold |
| Contact Mating Length | 5.842 mm |
| PCB Mounting Orientation | Right Angle |
| Tail Length | 3.3 mm |
| Plating Thickness | 2.54 µm |
| Contact Gender | Male |
| Mating Post Length | 5.842 mm |
| Contact Shape | Square |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Mating Retention | With |
| Contact Finish Thickness - Mating | 381 nm |
| PCB Mount Retention | Without |
| PCB Mount Alignment | Without |
Stock: 14888
Distributors
pcbx
pcbxUnit Price$0.70740
Ext.Price$0.70740
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70740 | $0.70740 |
| 10 | $0.66268 | $6.62680 |
| 25 | $0.62079 | $15.51975 |
| 50 | $0.58155 | $29.07750 |
| 100 | $0.54479 | $54.47900 |
| 300 | $0.51035 | $153.10500 |
| 500 | $0.47809 | $239.04500 |
| 1000 | $0.44787 | $447.87000 |
| 3000 | $0.41956 | $1258.68000 |
| 5000 | $0.39304 | $1965.20000 |
| 10000 | $0.36819 | $3681.90000 |
